PO-G1
PO-G1 4G GPS Pet Collar
Collar-mounted 4G tracker with health sensing and app — a base for custom development

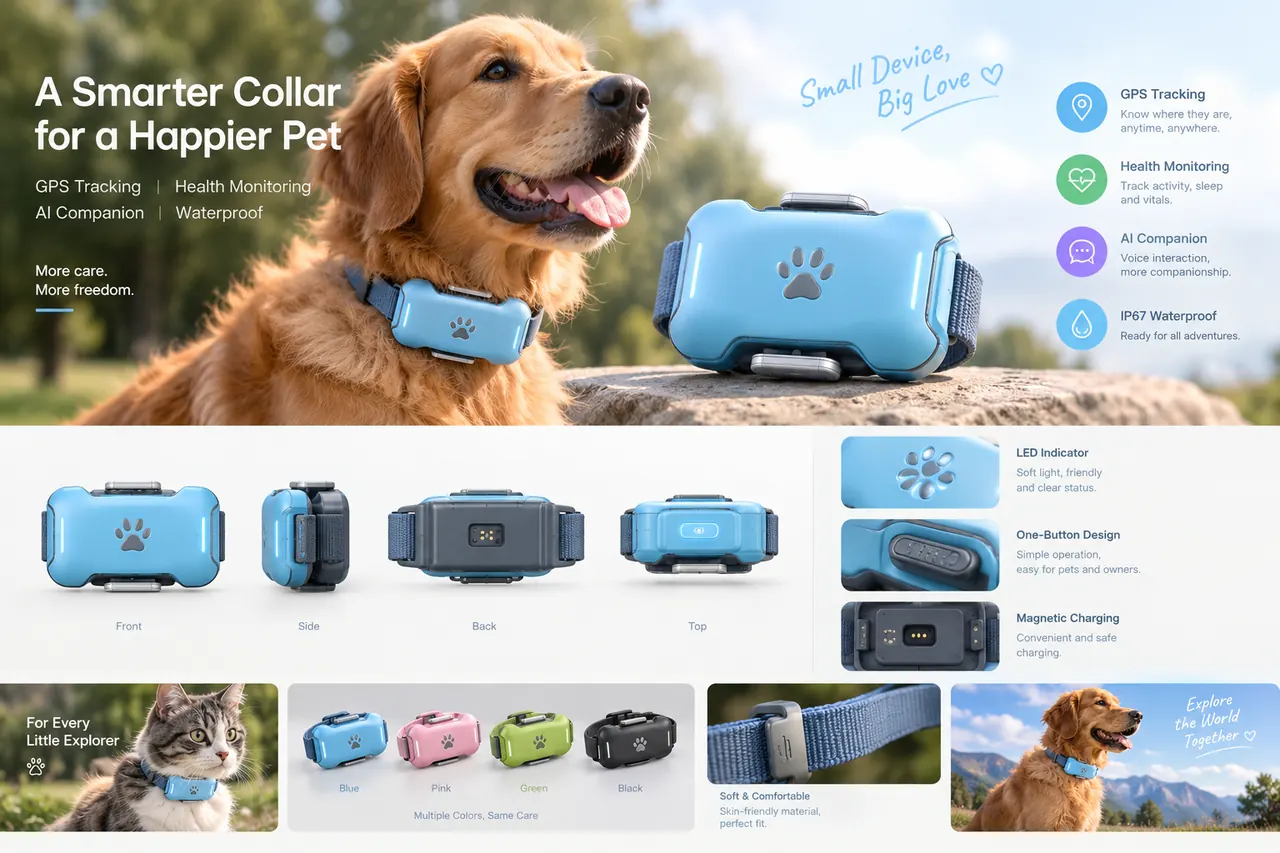

A 4G GPS pet collar reference design: multi-mode positioning, geofence alerts, activity and sleep monitoring and IP67 sealing, shipped with an app. Adapted to your brand through a paid development phase (NRE). Not sold off the shelf.
Why it works
A position, not a spinner
Satellite positioning outdoors, nearby Wi-Fi and cell data indoors and between buildings, so the app shows where the pet is more often.
Health signals, not just dots
Motion sensing with on-device processing reports activity and sleep, and flags scratching and licking, the early signs of skin trouble.
Made for dogs and cats
Chew-resistant IP67 housing for dogs; a lightweight, breakaway-safe version for cats and small dogs.
Branded app and cloud
Every project includes an owner app under your name — your logo, your colours, published from your developer account — and the cloud behind it.
Over-the-air updates
Firmware updates reach devices already in homes, rolled out in small batches first so a faulty build never reaches the whole fleet.
Location and health platform
A tracker judged on days between charges: positioning, power and sensing designed together
A collar tracker is a cellular radio, several positioning sources, a motion sensor and a battery in a housing a dog can swim in. They have to be designed as one system, because a duty cycle designed apart from the antenna fails in the field.
- 4G
- cellular tracking, regional band variants
- 4 sources
- satellite, Wi-Fi, cell and Bluetooth
- IP67
- sealed, chew-resistant housing
- OTA
- firmware over the air
The system, layer by layer
- Services
- Live tracking and history
- Geofence and escape alerts
- Lost mode
- Branded app, private platform and API option
- Health sensing
- Activity and sleep
- Scratch and lick trends
- On-device processing
- Positioning fusion
- Satellite positioning outdoors
- Nearby Wi-Fi and cell data
- Bluetooth for at-home detection
- Power management
- Duty cycle and sleep states
- Motion-triggered wake
- Charging protection
- Hardware
- Cellular module
- Antennas in a small housing
- Motion sensor and MCU
- IP67 housing and collar mount
Perceive
- Finds the pet outdoors, indoors and between buildings
- Senses activity, sleep, scratching and licking
- Knows when the pet is home
Decide
- Chooses the cheapest positioning source that is good enough
- Raises an alert when the pet leaves the fence
- Reports more often in lost mode
Improve
- Updates firmware over the air
- Staged rollout across the fleet
- Battery and positioning behaviour keep improving after shipment
What decides whether a tracker ships
Battery life against report rate
Every extra position report spends radio time. The duty-cycle design is the product; the housing is the easy half.
Positions near buildings
Satellite fixes fail between buildings. Blending in nearby Wi-Fi and cell data is what keeps a position on the screen.
Cellular bands and SIM plan
Target markets decide the band variant and the data plan. They are set at scoping, not after the first sample.
Fit and safety on the animal
Weight, mounting and breakaway behaviour matter most on cats and small dogs.
Specifications
Positioning and connectivity
| Network | 4G, regional band variants |
|---|---|
| Positioning | Satellite + Wi-Fi + cell + Bluetooth |
| Alerts | Geofence, lost mode, low battery |
Sensing and body
| Health | Activity, sleep, scratch and lick monitoring |
|---|---|
| Sealing | IP67 |
| Updates | Over-the-air firmware |
App and platform
| App | Branded app, iOS and Android |
|---|---|
| Upgrade path | Private platform and API in a custom project |
What you can change
- Logo on housing and charger; app name and colours
- Regional band variant and SIM or data-plan bundling
- Report-interval presets tuned to your battery-life claim
- Custom development: housing redesign, private platform, API
Designed toward
- CE
- FCC
- RoHS
- UN 38.3
A reference design, not stock. We build it under your brand — colourway, logo, packaging and tuning are yours.
Request a Quote
Take the PO-G1 4G GPS Pet Collar to your brand
Tell us your target market, quantity and the certifications you need. You get a cost envelope and a schedule from an engineer, within one business day.
