PO-L1

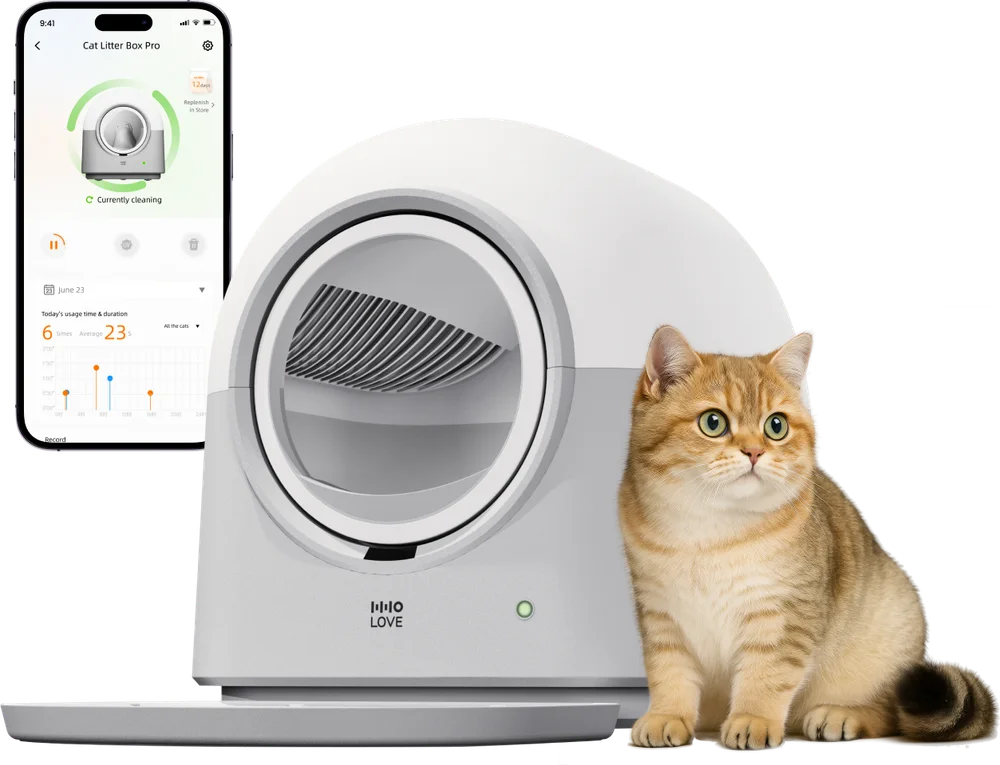

PO-L1 Self-Cleaning Litter Box
Automatic waste separation with cat-safe sensing — a base for custom development
A self-cleaning litter box reference design: automatic waste separation, cat-presence and weight sensing, anti-pinch protection, odour control and app alerts. Adapted to your brand through a paid development phase (NRE). Not sold off the shelf.
Why it works
Never starts with a cat inside
A microwave radar sensor, a motion sensor, four weight sensors, dual infrared detection and mechanical anti-pinch protection all point at one rule: the cleaning cycle only runs after the cat has left.
A large drum for large and multiple cats
A 60 L drum with a low entry takes cats from 1.5 kg up to 10 kg, and the sealed waste drawer holds about 12 days of waste for a multi-cat home.
Odour handled at three points
A sealed waste drawer with a deodoriser cartridge, UV sterilisation after cleaning cycles, and an optional fragrance pod. Self-sealing waste bags keep the owner away from the waste.
A health record for every cat
Weight is logged after every visit, with visit counts and a profile per cat in a multi-cat home, so a change shows up as a trend the owner can see.
Quiet, and less litter on the floor
Operation stays near ambient noise level, at around 36 dB, and a removable grated mat catches litter at the entry.
Branded app and cloud
Every project includes an owner app under your name — your logo, your colours, published from your developer account — and the cloud behind it.
Over-the-air updates
Firmware updates reach devices already in homes, rolled out in small batches first so a faulty build never reaches the whole fleet.
Safety and sensing platform
Several independent ways of knowing a cat is there
Most self-cleaning boxes rely on one sensor and a timer. This one fuses radar, motion, weight and infrared sensing, so the cleaning cycle only runs after the cat has left, and stops at once if one appears.
- 4
- weight sensors under the drum
- Radar + PIR + IR
- presence sensing, fused
- 60 L
- drum, for cats from 1.5 to 10 kg
- ~36 dB
- close to ambient noise
The system, layer by layer
- Cleaning logic
- Cycle starts only after the cat leaves
- Immediate stop if a cat appears
- Maintenance and drawer reminders
- Sensor fusion
- Microwave radar
- Motion sensor
- Dual infrared
- Four weight sensors
- Motion control
- Drum drive with torque monitoring
- Separation-tunnel sequencing
- Mechanical anti-pinch
- Mechanics and hygiene
- Rotating drum, separation tunnel
- Sealed drawer, self-sealing bags
- Deodoriser cartridge
- UV sterilisation
- Hardware and connectivity
- Wi-Fi controller
- Load cells and sensing front end
- Motor drive
- Over-the-air updates
Perceive
- Detects a cat by radar, motion, weight and infrared
- Weighs every visit
- Knows when the drawer needs emptying
Decide
- Runs the cycle only after the cat has left
- Stops at once when a cat appears mid-cycle
- Keeps a profile per cat in a multi-cat home
Improve
- Updates the firmware over the air
- Turns weight and visits into trends per cat
- Staged rollout, so a faulty build never reaches every unit
Why a litter box is harder than it looks
Safety is a system, not a sensor
No single sensor is trusted on its own. Presence is decided from several, with the mechanical anti-pinch as the last line.
Litter varies
Clumping litters differ in weight, dust and stickiness. Drum speed and sifting are tuned litter by litter, and the box is specified for clumping litter.
Torque and gears for years
A box runs several times a day for years. Torque monitoring, gear wear and seal life are tested for long cycle counts.
An odour path that stays closed
The sealed drawer, the self-sealing bag and the deodoriser are designed as one path, because odour escapes wherever the path is open.
Specifications
Cleaning
| Method | Rotating drum with a separation tunnel |
|---|---|
| Waste | Sealed drawer; about 12 days in a multi-cat home; self-sealing bags |
| Litter | Clumping litter |
Safety and sensing
| Presence | Microwave radar, motion sensor, dual infrared |
|---|---|
| Weight | Four weight sensors; cats from 1.5 to 10 kg |
| Protection | Mechanical anti-pinch; cleaning only after the cat leaves |
Size and odour
| Drum | 60 L, low entry |
|---|---|
| Footprint | About 60 × 57 × 66 cm |
| Odour | Deodoriser cartridge, UV sterilisation, optional fragrance pod |
| Noise | Around 36 dB |
App and platform
| Records | Visit log and weight after each use, per-cat profiles |
|---|---|
| Alerts | Cleaning schedule, maintenance and waste-drawer reminders |
| Connectivity | Wi-Fi |
What you can change
- Housing design, open-top or enclosed, size for large cats
- Litter types supported
- Optional camera or health-tracking app
- App branding, packaging and manuals in your languages
Designed toward
- CE
- FCC
- RoHS
A reference design, not stock. We build it under your brand — colourway, logo, packaging and tuning are yours.
Request a Quote
Take the PO-L1 Self-Cleaning Litter Box to your brand
Tell us your target market, quantity and the certifications you need. You get a cost envelope and a schedule from an engineer, within one business day.
