PO-R1

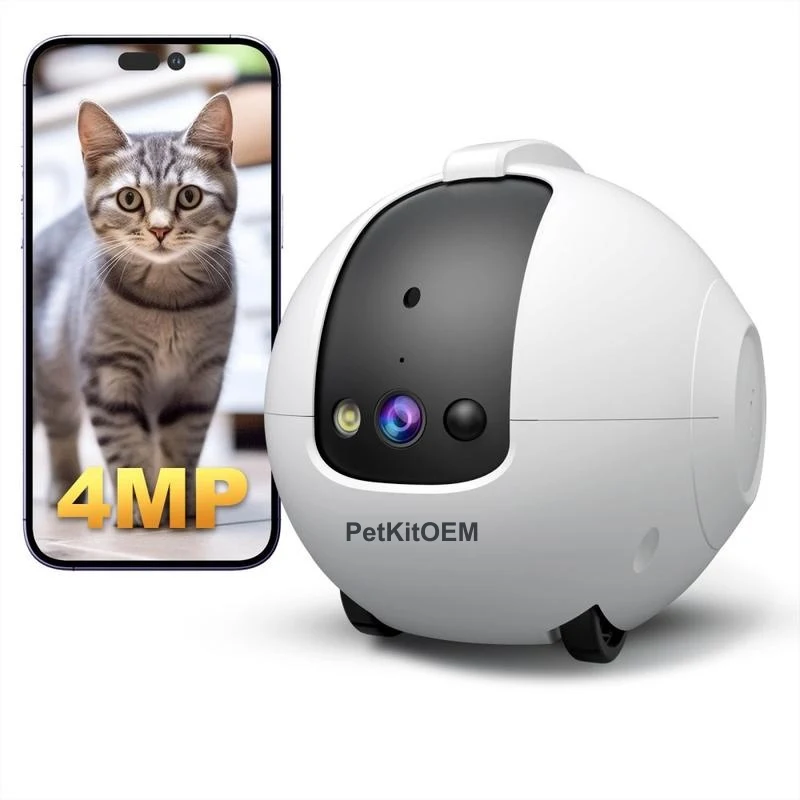

PO-R1 Mobile Pet Companion Robot
4 MP camera robot with a self-righting body, laser play and months of standby — a base for custom development
A pet companion robot reference design: a self-righting wheeled body with a 4-megapixel pan-tilt camera, six AI play modes, two-way audio, PIR and human detection, and automatic return to its charging base. App and cloud included. Adapted to your brand through a paid development phase (NRE). Not sold off the shelf.
Why it works
A camera that goes to the pet
Instead of watching from one corner, the robot drives to where the pet is, with a camera head that pans 360° and tilts 45°, so the owner sees the animal up close.
Sharp, day and night
A 4-megapixel sensor records at 2560 × 1440 with a 110° view and 3× digital zoom, and switches between infrared and full-colour night vision.
Six ways to play
AI play modes include a laser and a feather wand that spins and swings, so a pet that is home alone has something to chase.
Cannot be knocked over
A tumbler design returns the robot upright after every push, which matters when the player is a cat.
Months between charges
A 10,000 mAh battery gives up to six months of standby, and the robot returns to its charging base on its own.
Watches for you
PIR and AI human detection push alerts to the phone, with privacy masking zones, and two-way audio lets the owner talk to the pet or the room.
Branded app and cloud
Every project includes an owner app under your name — your logo, your colours, published from your developer account — and the cloud behind it.
Over-the-air updates
Firmware updates reach devices already in homes, rolled out in small batches first so a faulty build never reaches the whole fleet.
Drive and vision platform
A camera that goes to the pet: self-righting body, wheeled drive and 4 MP video designed together
A companion robot has to do four things at once: drive where the owner points it, never stay tipped over, play with the pet, and last for months between charges. Body, drive, camera, battery and app are designed as one system.
- 4 MP
- 2560 × 1440 video, 110° view
- 6
- AI play modes, laser and feather wand
- 10,000 mAh
- battery, up to 6 months standby
- 360° / 45°
- pan and tilt of the camera head
The product, layer by layer
- Experience
- Drive and patrol from the app
- Six AI play modes
- Two-way talk with the pet
- Fixed-camera mode
- Detection
- PIR motion detection
- Human and pet detection with push alerts
- Privacy masking zones
- Drive and play
- Wheeled drive on a tumbler body
- Pan and tilt head
- Laser module
- Feather-wand actions: spin and swing
- Video
- 4 MP sensor, 4 mm lens, 110° view
- 3× digital zoom
- Infrared and full-colour night vision
- Up to 5 simultaneous viewers
- Power and hardware
- 10,000 mAh dual-cell battery
- Automatic return to the charging base
- Wi-Fi video controller
- Card storage, cloud optional
Perceive
- Sees in 4 MP, in the dark with infrared or colour light
- Detects motion by PIR and recognises people and pets
- Hears and speaks through two-way audio
Act
- Drives to the pet, or patrols the home
- Plays with a laser or a feather wand
- Returns to its base to charge by itself
Improve
- Updates firmware over the air
- New play modes can arrive after launch
- Staged rollout across the fleet
What decides whether a robot for pets works
A body that cannot be knocked over
The tumbler design returns the camera upright after every push, so a cat swatting the robot does not end the game or the picture.
Months between charges
A robot that needs charging every day is abandoned. Standby power, wake-up and automatic return to the charging base are designed for months, not days.
Safe around animals
Speed and acceleration are limited, and the laser is steered so it never points at the animal’s eyes.
Video and alerts that stay useful
Human and pet detection decides which events reach the phone, so owners keep notifications on.
Specifications
Video and night vision
| Sensor | 1/3 inch CMOS, 4 megapixels (2560 × 1440) |
|---|---|
| Lens | 4 mm, 110° view, 3× digital zoom |
| Night vision | Infrared and full-colour |
| Viewers | Up to 5 at the same time |
Movement and play
| Body | Self-righting tumbler on a wheeled drive |
|---|---|
| Head | 360° pan, 45° tilt |
| Play | Six AI modes: laser, feather wand with spin and swing |
| Modes | Remote-driven, or fixed camera with motion detection |
Detection and audio
| Detection | PIR motion and AI human detection with push alerts |
|---|---|
| Privacy | Privacy masking zones |
| Audio | Built-in microphone and speaker, two-way talk |
Power and body
| Battery | 10,000 mAh, dual cell |
|---|---|
| Standby | Up to 6 months |
| Charging | Returns to the charging base automatically; Type-C |
| Size and weight | About 143 × 143 × 146 mm, about 540 g |
| Operating temperature | -10 °C to 50 °C |
App and storage
| Connectivity | Wi-Fi |
|---|---|
| Storage | Memory card; cloud optional |
| App | Branded app, iOS and Android |
What you can change
- Shell shape, colours, materials and logo
- Play accessories: laser, feather wand, treats
- Battery size, standby time and charging base
- App branding, cloud region and packaging
Designed toward
- CE
- FCC
- RoHS
- UN 38.3
A reference design, not stock. We build it under your brand — colourway, logo, packaging and tuning are yours.
Request a Quote
Take the PO-R1 Mobile Pet Companion Robot to your brand
Tell us your target market, quantity and the certifications you need. You get a cost envelope and a schedule from an engineer, within one business day.
